ROBIO® EX 了解更多
商品编号： NV-174-1835
软件语言： 英文
器械分类： II
生产厂家： Perfint Healthcare Pvt. Ltd.
公司网址： http://www.perfinthealthcare.com/
认证信息： FDA 联系经销商
  • 产品简介
  • 临床优势
  • 典型病例
  • 文献下载
  • 操作流程
  • 用户评价
  • 装机用户

产品简介

OVERVIEW

IO procedures made safer and consistent

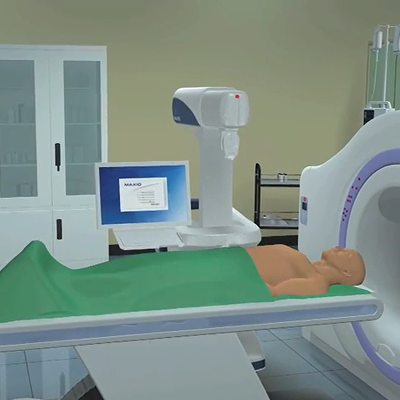

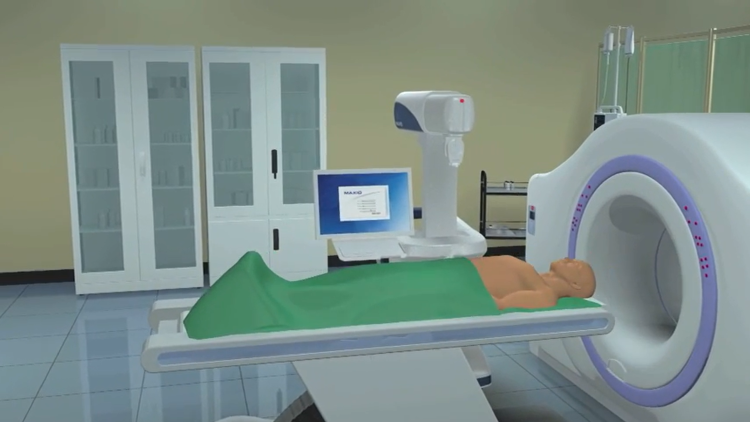

ROBIO" EX is a CT & PET-CT guided robotic positioning system that assistswith fast and accurate tumor targeting and tool placement for abdominal andthoracic interventions, including biopsy, FNAC, pain management, drainageand tumor ablation

ROBIO" EX offers several features to help clinicians target the tumor and planfor accurate tool placement for diagnosis or therapy. ROBIO" EX can be usedfor targeting and tool placement in deep seated lesions requiring orbital orcrano-caudal angulation or a combination of both.ROBIO" EX helps reduce the number of needle punctures, check scans.procedure time, patient pain and radiation exposure

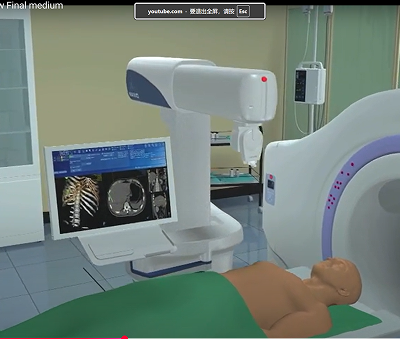

Click to watch the video

临床优势

BENEFITS

ROBIO° EX benefits

Robotic accuracy for small and complex targets-CT / PET-CT interventions

Quick registration using InstaReg TM

Patient movement & respiratory motion solution

Procedure specific workflow & reporting

Less radiation - No fluoro for needle placement, Safe on doctor, Safe on patient

Reproducible Quality -Even less experienced physicians achieve excellent results

Broad Application -Improved ability to perform complex procedures

Patient Immobiliser *:

ROBIO" EX comes with an easy to use and reusable patient immobilizer to minimize patient movement during the procedure

Respiratory motion tracker *

ROBIO" EX uses breath hold management system to stabilize the targets that are affected by respiratory movement


典型病例


文献下载


操作流程

WORKFLOW

Advanced Robotic targeting for CT & PET-CT guided interventions

Set Up

1.Choose the desired image slice by scrolling the images

Plan

2. Select the target point with mouse click over the target

3. Select the entry point at skin level and select needle length

4. Confirm a safe trajectory, not involving any vital organs, as shown on thesoftware.

Execute

5. Manually advance the needle through the probe quide to reach thetumor/target

Verify

6. Perform a check scan to check needle position, Software overlaps the planned

trajectory over needle

7. Perform the intended procedure

8.Generate patient reports to document procedure

9.Image registration may be used for follow-up visits
